DIFFERENTIALS THAT MAKE OUR DNA

B.IOT - THE INTERNET OF THINGS IN BIOTECNO

The IoT is the technological trend for the coming years, bringing more convergence and agility to all sectors. This concept was incorporated by Biotecno and became B.IoT, a reality in our scientific refrigerators and freezers, which bring intelligent solutions for storing vaccines, blood and laboratory supplies. Biotecno equipment can be remotely managed and provides performance reports and graphs, streamlining the work of laboratories, clinics and hospitals.

TOTAL REDUNDANCE SECURITY SYSTEM

Temperature control system installed in parallel with the self-sensing master control, which automatically takes over the chamber's temperature control whenever the master control system fails or even a temperature deviation (above 7.5 ° C) or (below 2.5 ° C) occurred for any reason, truly acting as a “guardian angel”. This system also features unique performance reporting software with encrypted data that ensures total impartiality in data acquisition.

EXCLUSIVE B.IOT DATA TECHNOLOGY DISPLAY

Moment, minimum and maximum temperatures reached
Commercial power outages
Open door
Sensor failure
Low battery
Missing pen drive
Maintenance Alert
Temperature alarm simulator
Commercial utility voltage control
WiFi connection
Cooling system failure
Condenser Cleaning Indicator

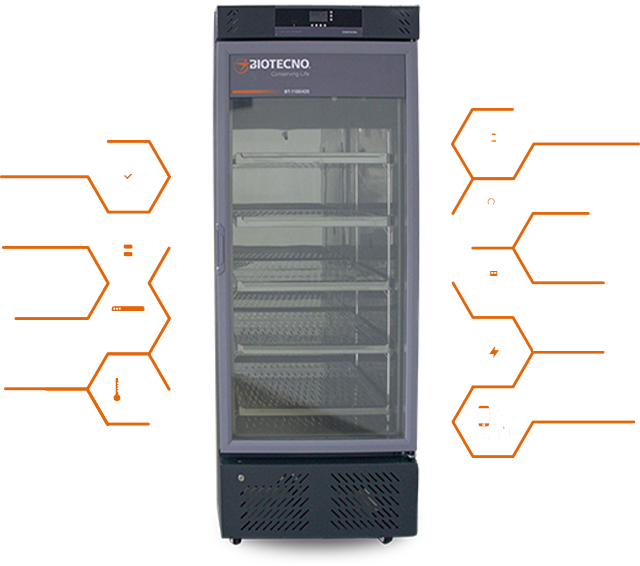

EMERGENCY SYSTEM KEEPS THE EQUIPMENT OPERATING IN THE EVENT OF POWER FAILURE

Biotecno has created the emergency system capable of keeping the equipment in operation for long periods, which has become a trend and a standard for the segment. The power backup consists of sealed or stationary type batteries that keep the camera in full operation for up to 72h, including the cold compressor.

EXTERNAL
Vertical or horizontal type constructed of stainless steel, high strength ABS or epoxy chemically treated steel sheets. Mounted on metal chassis and lockable swivel castors.

INTERNAL
Constructed of stainless steel, high strength ABS, polypropylene or epoxy coated galvanized steel sheets. Equipped with shelves, baskets, drawers with telescopic slides and counterparts in transparent acrylic.

LIGHTING
In LED, with automatic activation when opening the door and / or programmable timer with external activation even with the door closed.

TEMPERATURE HOMOGENIZER
Homogenization of the internal environment through linear or axial fans with automatic shut-off when the door is opened.

THERMAL INSULATION
In CFC-free high density injected polyurethane, thickness 30 to 100 mm.

DOOR
Vertical or horizontal type, fully blind in stainless steel or epoxy-coated galvanized steel optionally with triple-glazed glass display, all-glass double or triple glazed with anti-fog (fog) system with aluminum or PVC profile, sealed via magnetic profile, anatomical handles, locking system with keys and electronic and biometric password, equipped with timed opening alarm.

REFRIGERATION
Through C-free R-404A hermetic gas circulation compressor, forced-air evaporator unit, automatic condensate evaporation defrosting system.

CONTROL PANEL
Mounted on the upper front and can be membrane type with soft touch or touch screen keys. Microprocessed electronic controller with LCD / BIG display. USB / PENDRIVE input for performance reporting. Lighting key. Key to access the programming MENU. Key to silence alarms. Programming locking system against inadvertent password handling directly on the panel. System that restores the programmed parameters even with sudden power variation or equipment shutdown. Filter against electromagnetic noise. Automatic programming check system. Equipped with up to 08 NTC or PT-100 sensors (expandable) immersed in air and diathermic solution with electronic filters. Sealed battery to keep the display with electronic functions, allowing alarms and telephone dialer to be triggered when commercial power fails.

VISUAL DISPLAY ON PANEL
Simultaneous display of current temperatures, minimum and maximum temperatures reached, open door indication, commercial power failure, sensor failure, low battery, missing drive, maintenance alert.

AUDIOVISUAL ALARMS
Low temperature, high temperature adjustable by the user. Power failure alarms, door open, inhibit key to silence buzzer for 15 minutes or user adjustable. Equipped with alarm simulator.

WORKING RANGE
Minimum 2 ° C and maximum 8 ° C for vaccines, 2 ° C to 6 ° C for blood and its components or user adjustable, with a variation of + -0.1 ° C. -10 ° C to -36 ° C freezing and -50 ° C to 86 ° C deep freezing.

SECURITY SYSTEM
Thermostat installed in parallel with the camera's electronic controller, automatically taking over the control functions of the cold compressor command if there is a failure in the electronic control.

DIALER
Automatic system that sends out of range temperature alert or power outage for up to nine preprogrammed numbers using direct line, central office extension or cellular dialer.

MANAGEMENT SOFTWARE
Outputs performance reports and graphs, including backwards, enabling internet camera management with RS 232/485 / DB-25 serial output and interface for product control and monitoring.

EMERGENCY SYSTEM (OPTIONAL)
Backup of electrical power produced by sealed or stationary type batteries that can keep the camera in full operation, including the cold compressor, via autonomous voltage inverters that can range from 2 to 72 hours (or longer with battery increment) .

VOLTAGE CONTROLLER (OPTIONAL)
Monitors and activates the Emergency System in the absence or instability of electricity. Outputs voltage performance data via data logger.

OPERATION
110-127 / 220 volts 50/60 Hz.

WARRANTY
12 months.

ANVISA PRODUCT REGISTRATION
80573310001 - AFE ANVISA - K0146H6L074L

Temperature controller certification for proof of measurement uncertainty (IM, errors, trends, etc.), calibrated at three points, together with INMETRO (RBC) proven traceability.
Remote alarm system developed for places that are not served by conventional telephone line, uses cellular chip of any operator, making automatic calls to up to six numbers (mobile or landline) whenever the equipment alarms for CRITICAL temperature.
In clear acrylic for each drawer.
With the logo of the establishment and the image to be chosen by the customer. See custom sticker options by clicking here.
Cylindrical lock system for locking the door.
Shelf movement system through electric micromotor and electronic timer.
Through 12 volt (dc) converter to 110/220 volts (ac), maintaining all electro-electronic functions, including the free range¹ cold compressor according to the model from 2 to 72 hours. Integrated into the cabinet, mounted on the bottom of the chamber, with sealed battery drawer. AutonomiaEmergency of the Emergency System may vary due to ambient temperature and battery usage time.
System for extracting temperature data via flash drive / data logger.
20 units of recyclable ice caps to aid in temperature maintenance. Only for equipment purchased WITHOUT Emergency System.
For the introduction of sensors for conducting thermal qualification tests.
Thermal proof of homogenization and operation of equipment performed on site by a company accredited to the Brazilian Calibration Network (RBC) encompassing Installation Qualification (IQ), Operation Qualification (QO) and Performance Qualification (QD) with issuance of technical report.
Monitor the geographical positioning and temperature of the equipment.
Photovoltaic panel for power supply for all electro-electronic functions, including the cold compressor. Control cabinet and sealed battery integrated into the cabinet, arranged at the bottom of the camera with variable autonomy with the model.
Set of 4 swivel castors with 3” diagonal brakes
Ethernet communication data converter (internet or intranet). Interface that allows Biotecno cameras to connect to networked computers. Through the IP address of the converter it is possible to access and manage the equipment in local network through the Internet.
Thermal proof of homogenization and operation of the equipment by a company accredited to the Brazilian Calibration Network (RBC) with the issuance of a technical report.
Touch screen control panel with access to equipment functions.
Voltage controller, monitors and activates the emergency system in case of power instability. Outputs performance data via management software.
