BT 1100/50 Smart Thermal Box

30 liters

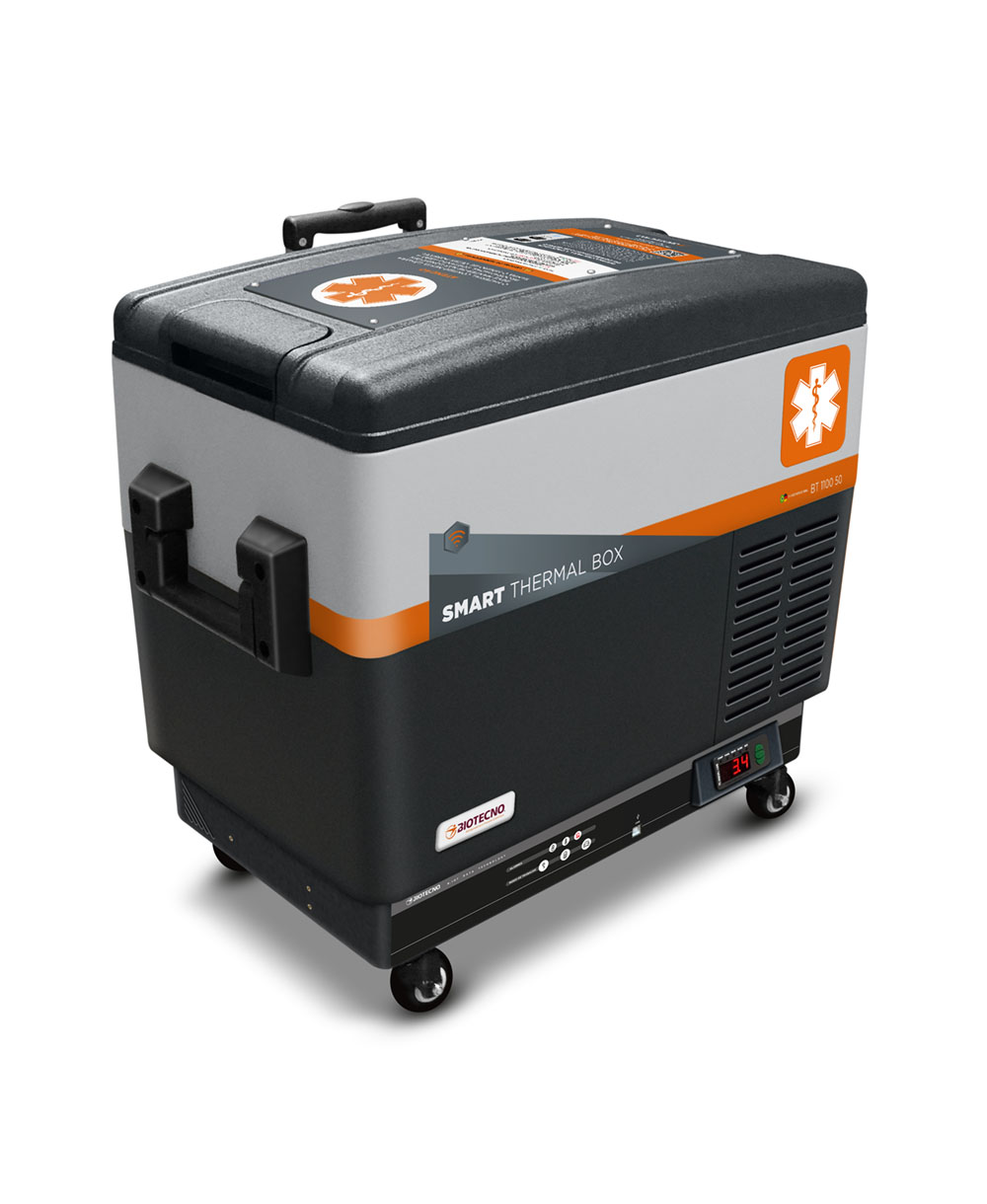

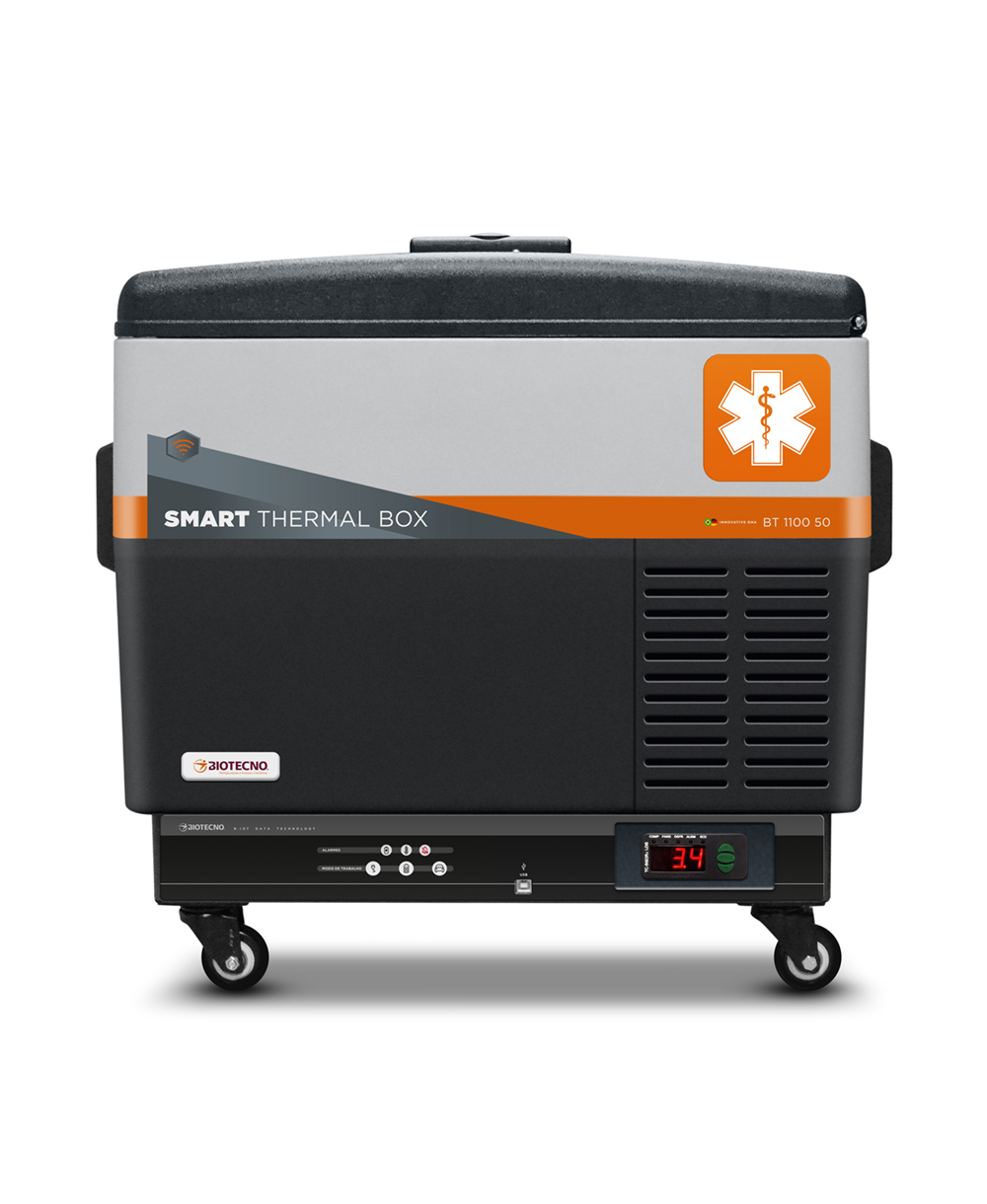

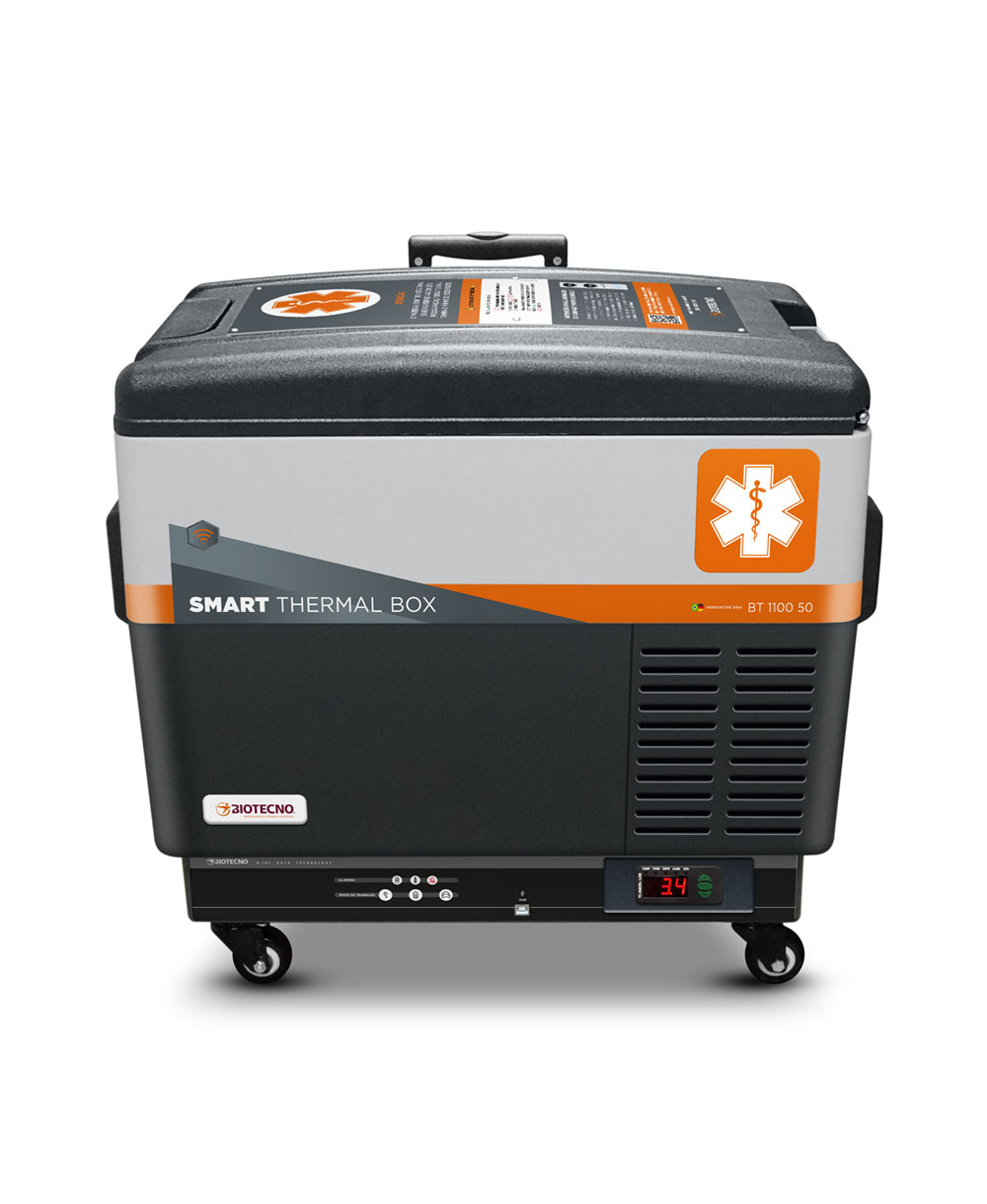

BT 1100/50 Smart Thermal Box

Smart Refrigerator for transport and conserve vaccines, medicines, organs, botulinum toxin and thermolabile products.



30 liters
2°C to 8°C
56H X 63W X 37D (cm) external
33H X 27,5W X 30P + 13H X 27,5L+12,5D (cm) internal
Product weight 24 Kg
Automatic 100-240V | Vehicle 12VCC
Emergency System for 6 hours

CAPACITY
30 liters.

CABINET

Thermoplastic material.

TEMPERATURE HOMOGENIZER
The forced-air circulation ensure perfect homogenization of the temperature at all points inside the equipment. It shuts down when the door is opened.

WORKING RANGE
Minimum of 2°C and maximum of 8°C (or 6°C for storage of blood and its components), with set point at 4°C, or adjustable by user, with a variation of + -0.1°C.

AUDIOVISUAL ALARMS
Temperature below 2°C, temperature above 8°C (or 6°C for storage of blood and its components), or adjustable by user. Alarms for electric power cut, open door, inhibit key to silence the buzzer for 15 minutes, or adjustable by user. Equipped with alarm simulator.

MANAGEMENT SOFTWARE
Real time follow-up, access to charts and reports remotely via mobile application, including retroactive data, allowing management of the refrigerator via Internet with RS232/485/DB-25 serial output.

EMERGENCY SYSTEM
It operates through a 12 volts (cc) to 110/220 volts (ac) converter, supporting all the electro-electronic voltages, including the cold compressor for 6 hours. *Emergency System autonomy can vary due to the ambient temperature and battery conditions.

OPERATION
100/240 VOLTS 50/60 Hz (automatic) and 12 VDC (vehicular).

CASTERS
Castors and retractable handle type.

ANVISA BRAZIL
80573310001.

PATENTED PRODUCT.

ATTENTION
Panel and display configurations may vary depending on equipment features. Merely illustrative images. Equipment design may change without notice.

Temperature controller certification for proof of measurement uncertainty (IM, errors, trends, etc.), together with INMETRO (RBC) proven traceability.
With the logo of the establishment and the image to be chosen by the customer. See custom sticker options by clicking here.
Monitor the geographical positioning and temperature of the equipment.
Ethernet communication data converter (internet or intranet). Interface that allows Biotecno cameras to connect to networked computers. Through the IP address of the converter it is possible to access and manage the equipment in local network through the Internet.
