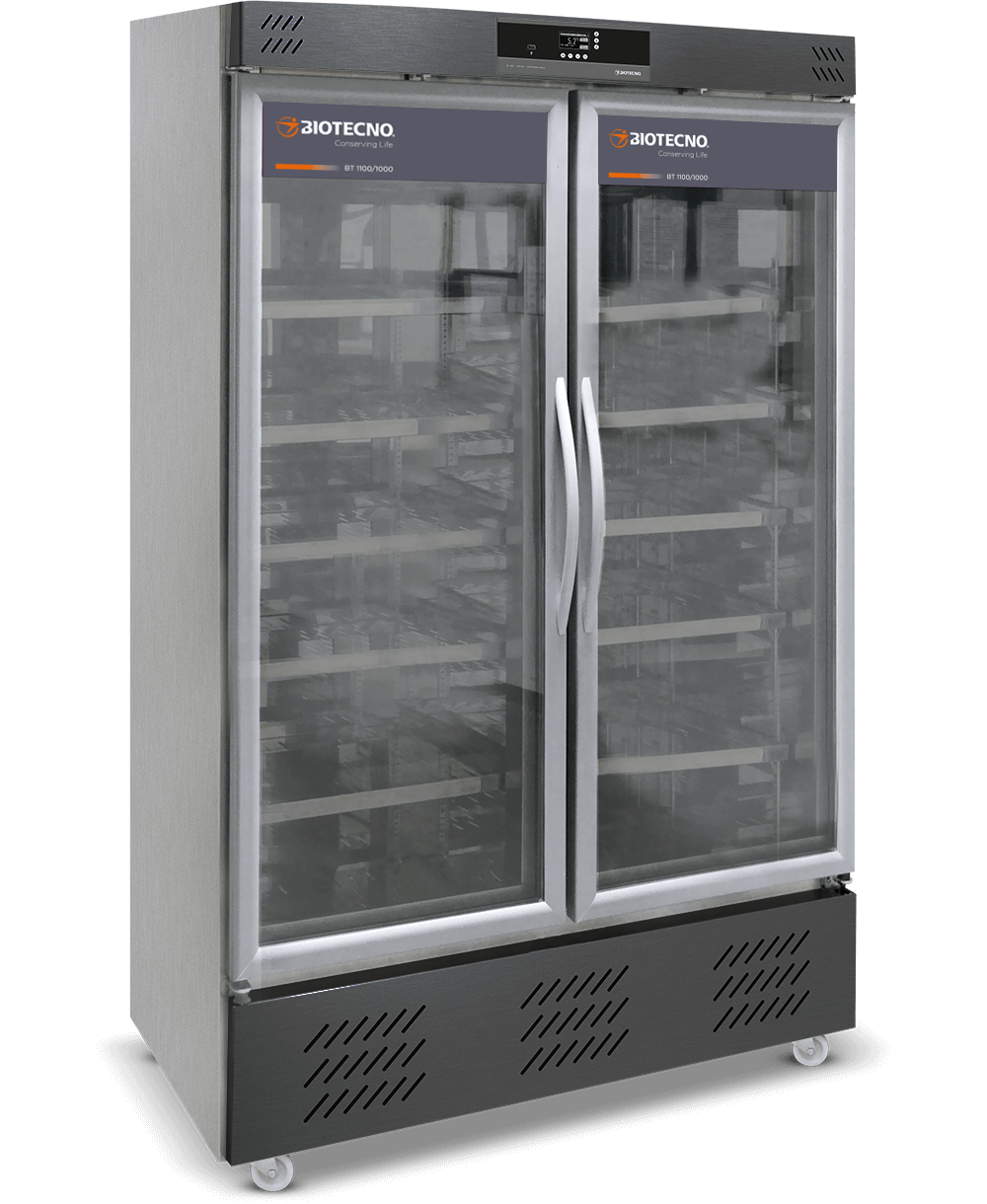

Smart Refrigerator to storage of vaccines, drugs and medicines with temperature from 2° to 8°C, alarms, dialer and temperature homogenization system. This is a modular device, designed to be assembled at the place of use. Each component is taken individually to the room, where our specialized technical team performs the assembly, configuration and leaves the chamber in operation. Biotecno also performs the disassembly of the equipment and its subsequent assembly in a new location, in case of change of room or address. With this exclusive service, Biotecno remains at the forefront of problem solving and overcomes the accessibility challenges for large equipment.
|2°C to 8°C (ou 2°C to 6°C blood)|
|202H X 136W X 70D (cm) external|
|135H X 121W X 61D (cm) internal|
|10 a 12 shelves or drawers|
|2 triple glass doors|
|Optional, Emergency System for 12 ou 24 hours|
Vertical stainless steel cabinet with 4 swivel castors with 3 "diagonal brakes.
Stainless steel cabinet equipped with 10 shelves or drawers.
Led lamps with automatic activation when opening the door and/or optional programmable timer with external access even when the door is closed.
The forced-air circulation ensure perfect homogenization of the temperature at all points inside the equipment. It shuts down when the door is opened.
High density injected polyurethane.
Two Triple glass vertical door with anti-fog system, magnetic profile seal with opening alarm.
Through airtight compressor with CFC-free R-134 A ecological gas circulation, forced-air evaporator unit, automatic defrost system with condensate evaporation.
On the top of the equipment with main switch and protection fuses on the back and membrane-type front panel with soft-touch keys. Electronic microprocessed thermostat with temperature and programming parameters decimal digital display, locking system against inadvertent handling, system that re-establishes the programmed parameters even with abrupt energy variation or equipment shutdown. Filter against electromagnetic noise. Automatic function check system. Equipped with ITTC type sensors. 2.3 amperes battery to support the functions of the electronic panel, to trigger alarms and the dialer on equipment without emergency system.
Visual and simultaneous display for commercial power, temperature deviations, open door, power failure and battery charge level. Electronic recorder of maximum and minimum temperatures reached.
Temperature below 2°C, temperature above 8°C (or 6°C for storage of blood and its components), or adjustable by user. Alarms for electric power cut, open door, inhibit key to silence the buzzer for 15 minutes, or adjustable by user. Equipped with alarm simulator.
Minimum of 2°C and maximum of 8°C (or 6°C for storage of blood and its components), with set point at 4°C, or adjustable by user, with a variation of + -0.1°C.
Electronic recorder of maximum and minimum temperatures reached.
Thermostat installed in parallel with the electronic controller of the equipment, automatically taking control of compressor functions whenever the electronic control fails.
Automatic system that makes telephone calls via telephone switchboard or direct fixed line for up to six numbers whenever the equipment alarms at critical temperature.
Real time follow-up, access to charts and reports remotely via mobile application, including retroactive data, allowing management of the refrigerator via Internet with RS232/485/DB-25 serial output.
Bivolt 127/220 VOLTS 50/60 Hz
Panel and display configurations may vary depending on equipment features. Merely illustrative images. Equipment design may change without notice.
