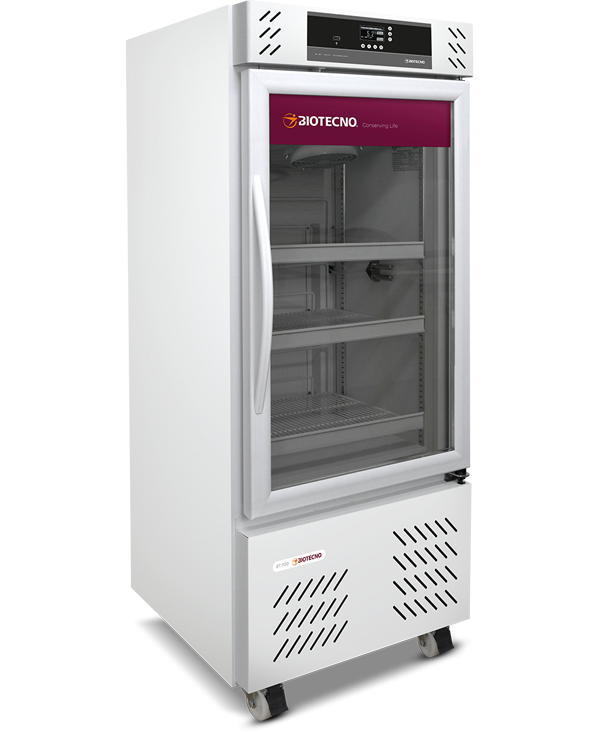

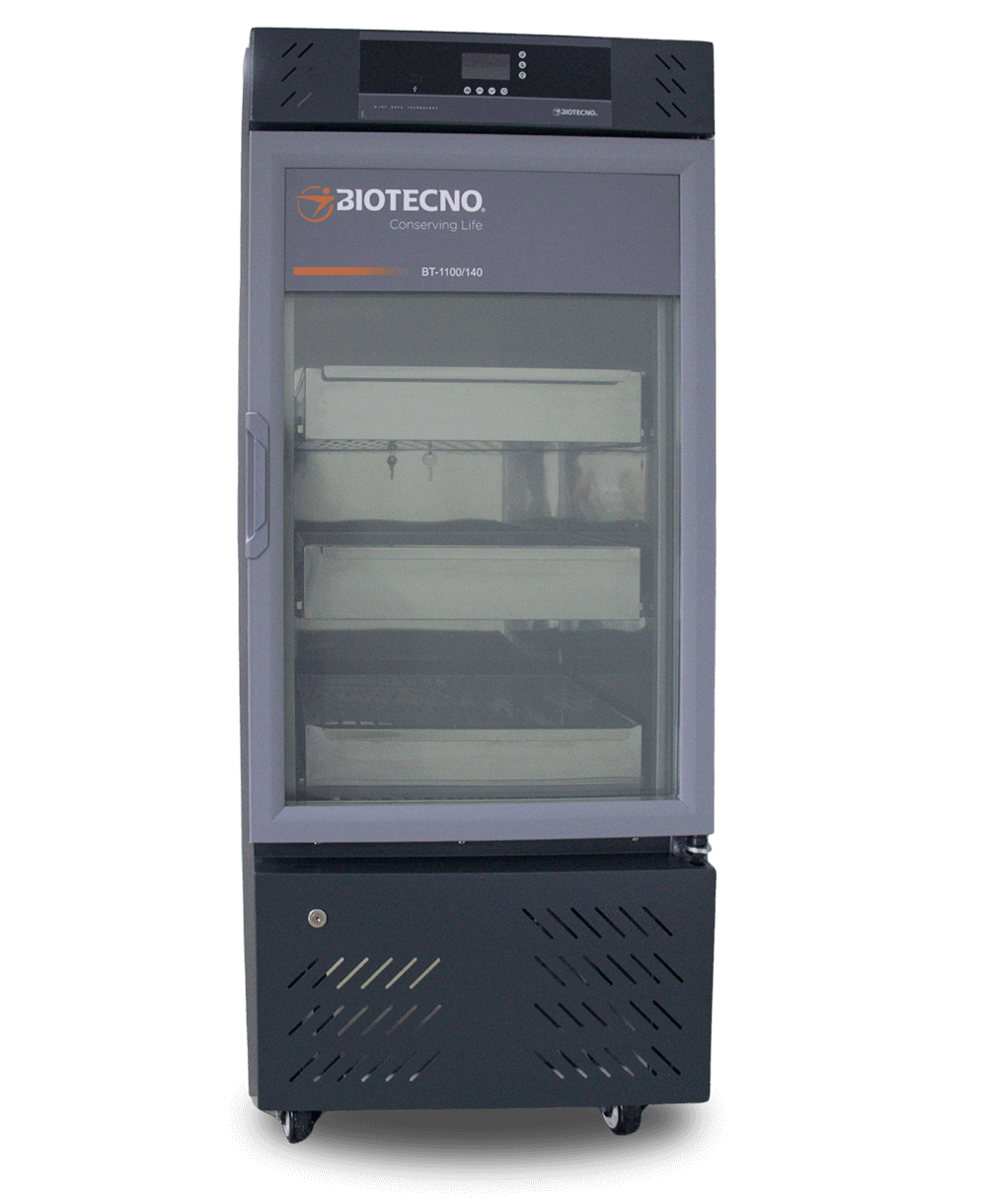

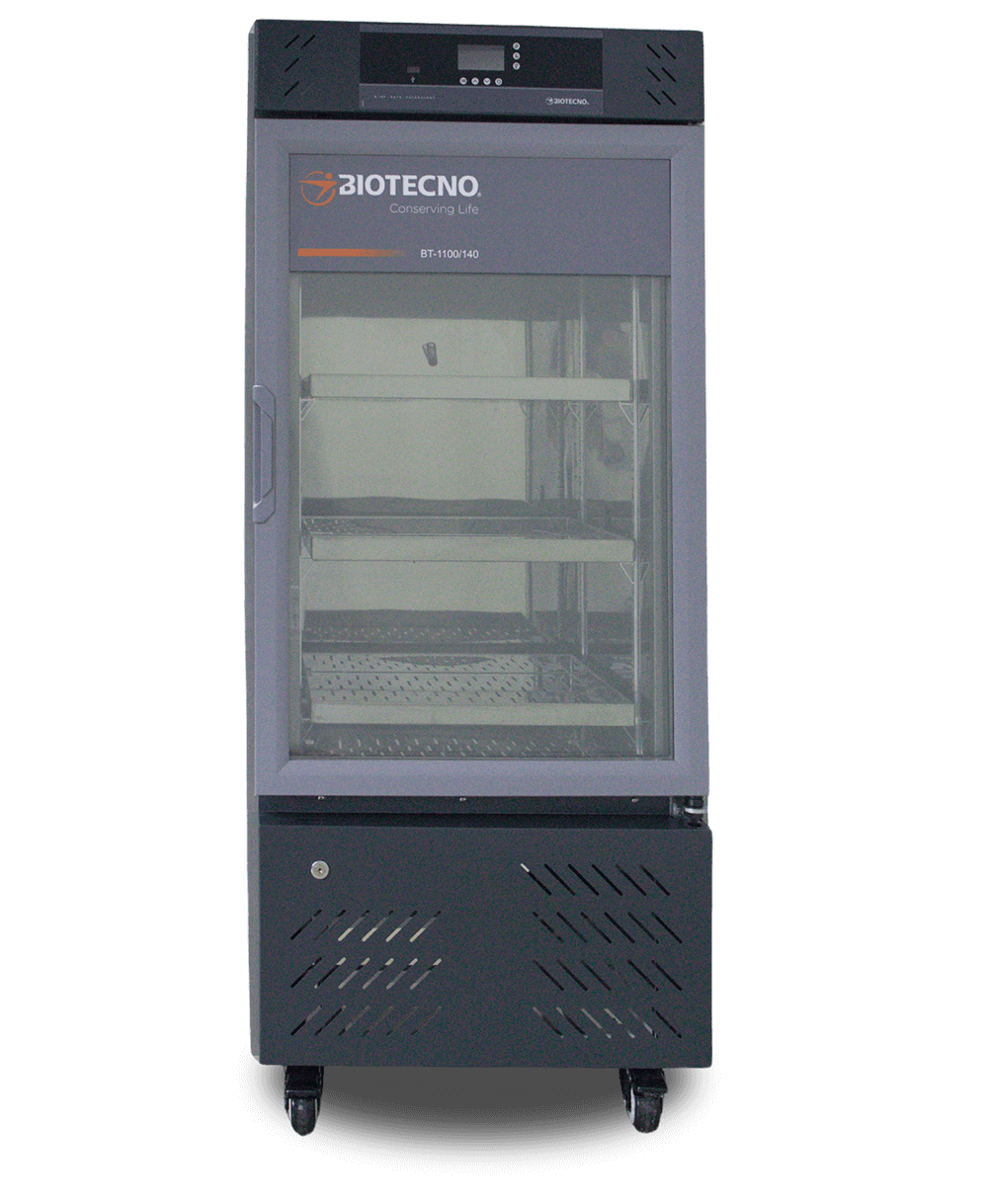

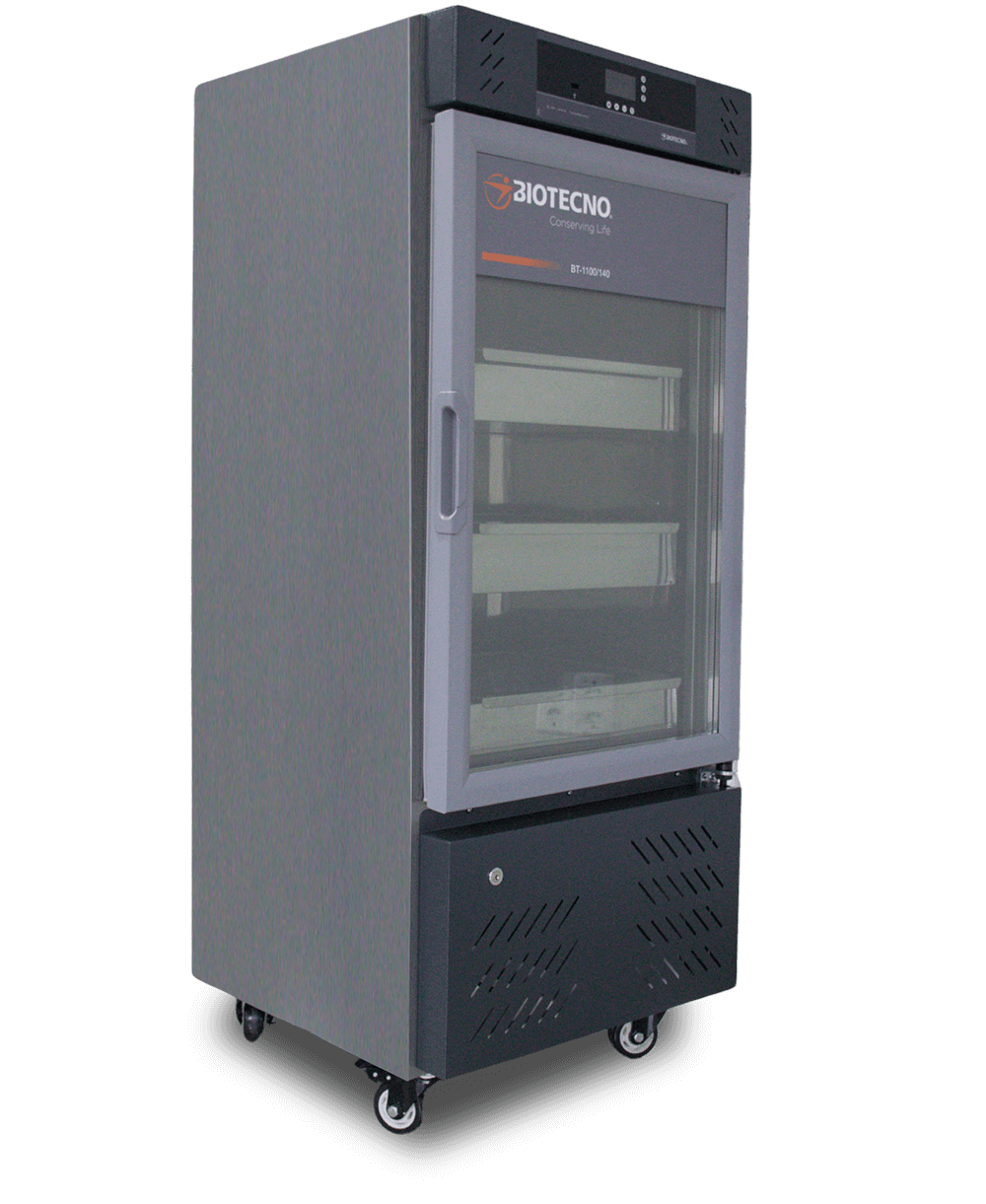

Smart Refrigerator to storage of vaccines, drugs and botulinum toxin with temperature from -10°C to -35°C, alarms, dialer and temperature homogenization system.
|-10°C to -35°C|
|144H X 60W X 57D (cm) external|
|78H X 46W X 44D (cm) internal|
|2 a 3 shelves or drawers|
|Triple glass door|

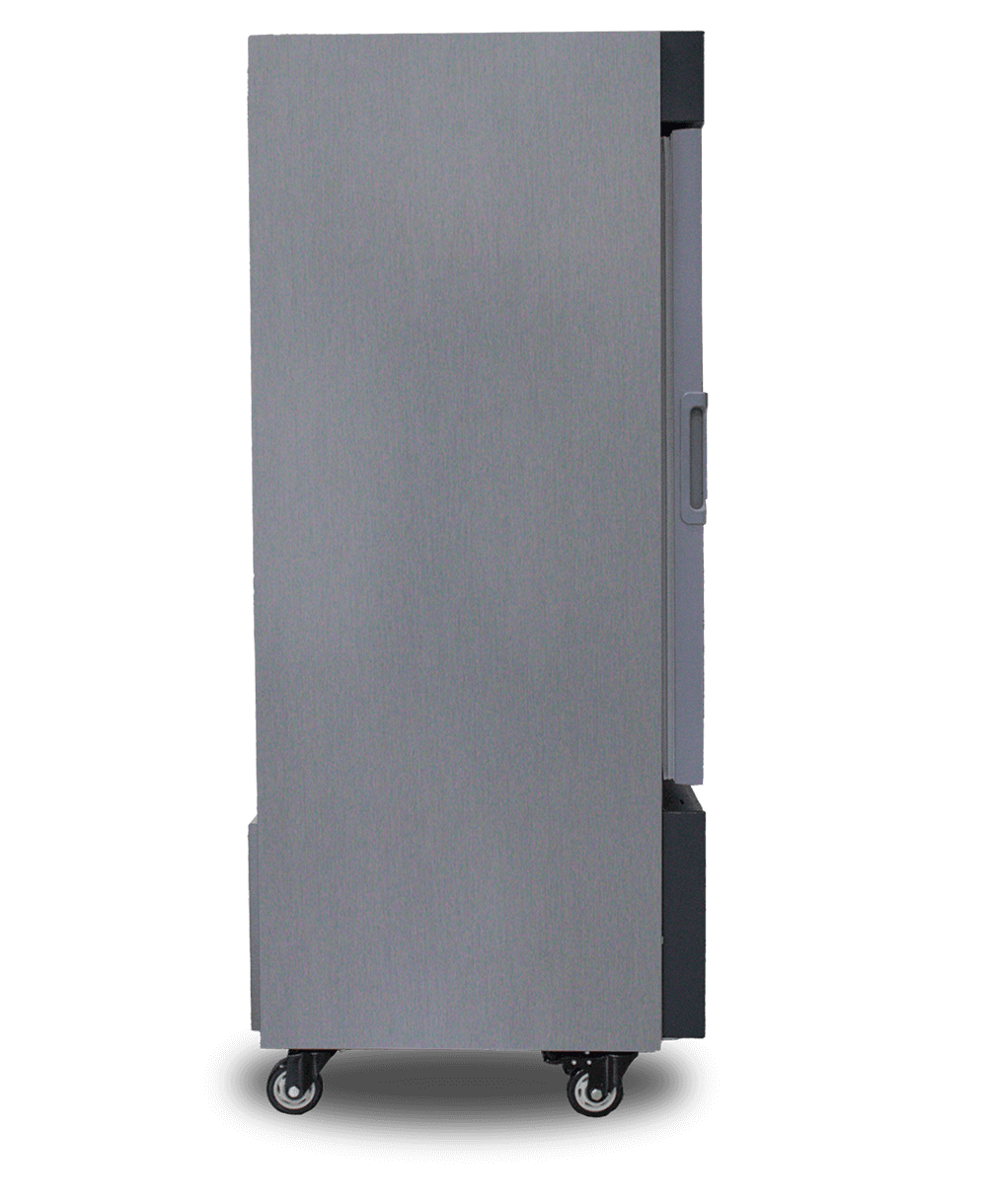

Vertical stainless steel cabinet with 4 swivel castors with 3 "diagonal brakes.

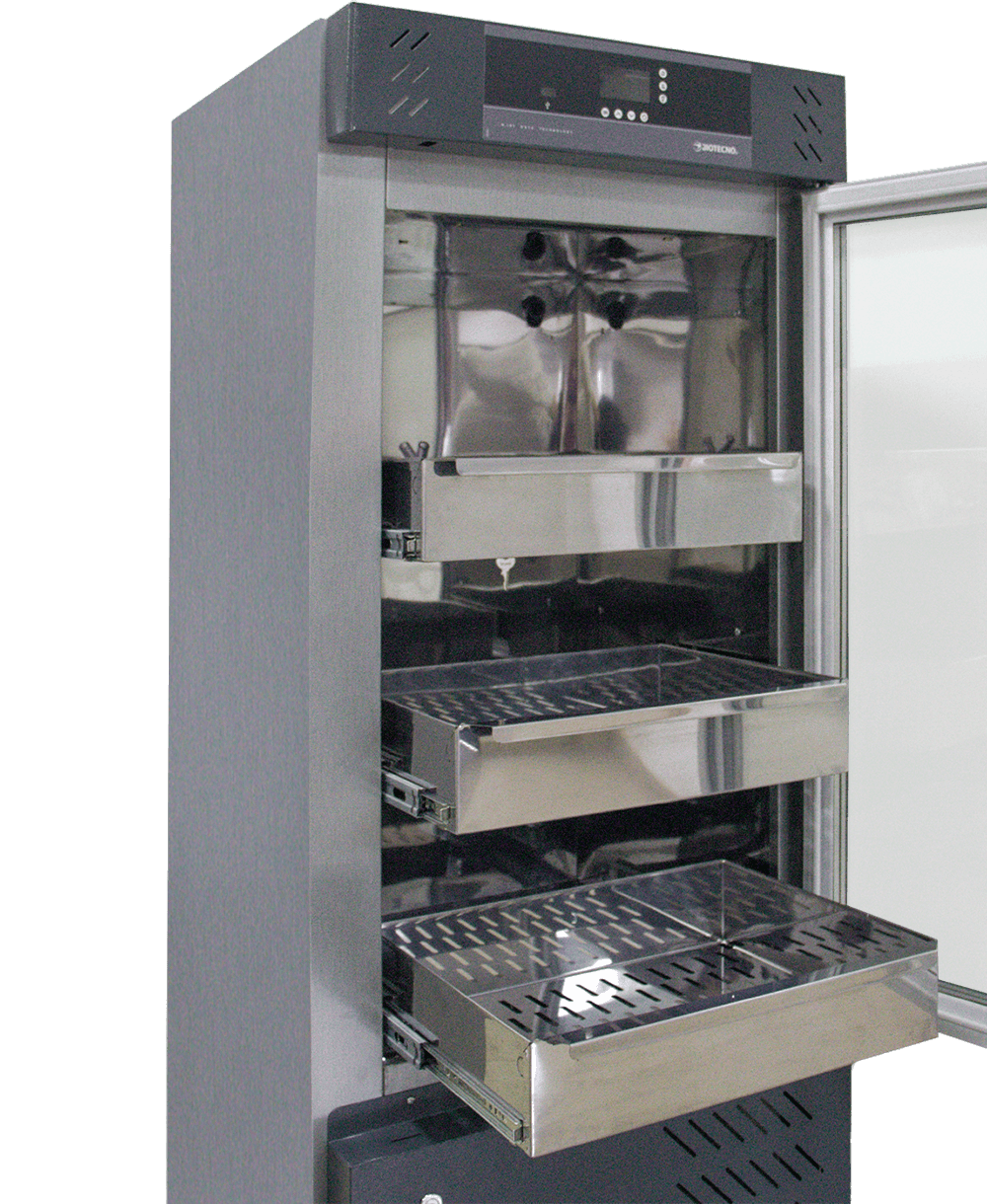

Stainless steel cabinet equipped with 3 shelves ou drawers.
Led lamps with automatic activation when opening the door and/or optional programmable timer with external access even when the door is closed.
The forced-air circulation ensure perfect homogenization of the temperature at all points inside the equipment. It shuts down when the door is opened.
High density injected polyurethane.
Triple glass vertical door with anti-fog system, magnetic profile seal with opening alarm.
Through airtight compressor with CFC-free R-134 A ecological gas circulation, forced-air evaporator unit, automatic defrost system with condensate evaporation.
On the top of the equipment with main switch and protection fuses on the back and membrane-type front panel with soft-touch keys. Electronic microprocessed thermostat with temperature and programming parameters decimal digital display, locking system against inadvertent handling, system that re-establishes the programmed parameters even with abrupt energy variation or equipment shutdown. Filter against electromagnetic noise. Automatic function check system. Equipped with ITTC type sensors. 2.3 amperes battery to support the functions of the electronic panel, to trigger alarms and the dialer on equipment without emergency system.
Visual and simultaneous display for commercial power, temperature deviations, open door, power failure and battery charge level. Electronic recorder of maximum and minimum temperatures reached.
High temperature, low temperature, power failure, door open, with inhibit key to silence the buzzer for 15 minutes.
-10°C to -35°C.
Electronic recorder of maximum and minimum temperatures reached.
Thermostat installed in parallel with the electronic controller of the equipment, automatically taking control of compressor functions whenever the electronic control fails.
Automatic system that makes telephone calls via telephone switchboard or direct fixed line for up to six numbers whenever the equipment alarms at critical temperature.
Real time follow-up, access to charts and reports remotely via mobile application, including retroactive data, allowing management of the refrigerator via Internet with RS232/485/DB-25 serial output.
Bivolt 127/220 VOLTS 50/60 Hz
Panel and display configurations may vary depending on equipment features. Merely illustrative images. Equipment design may change without notice.
